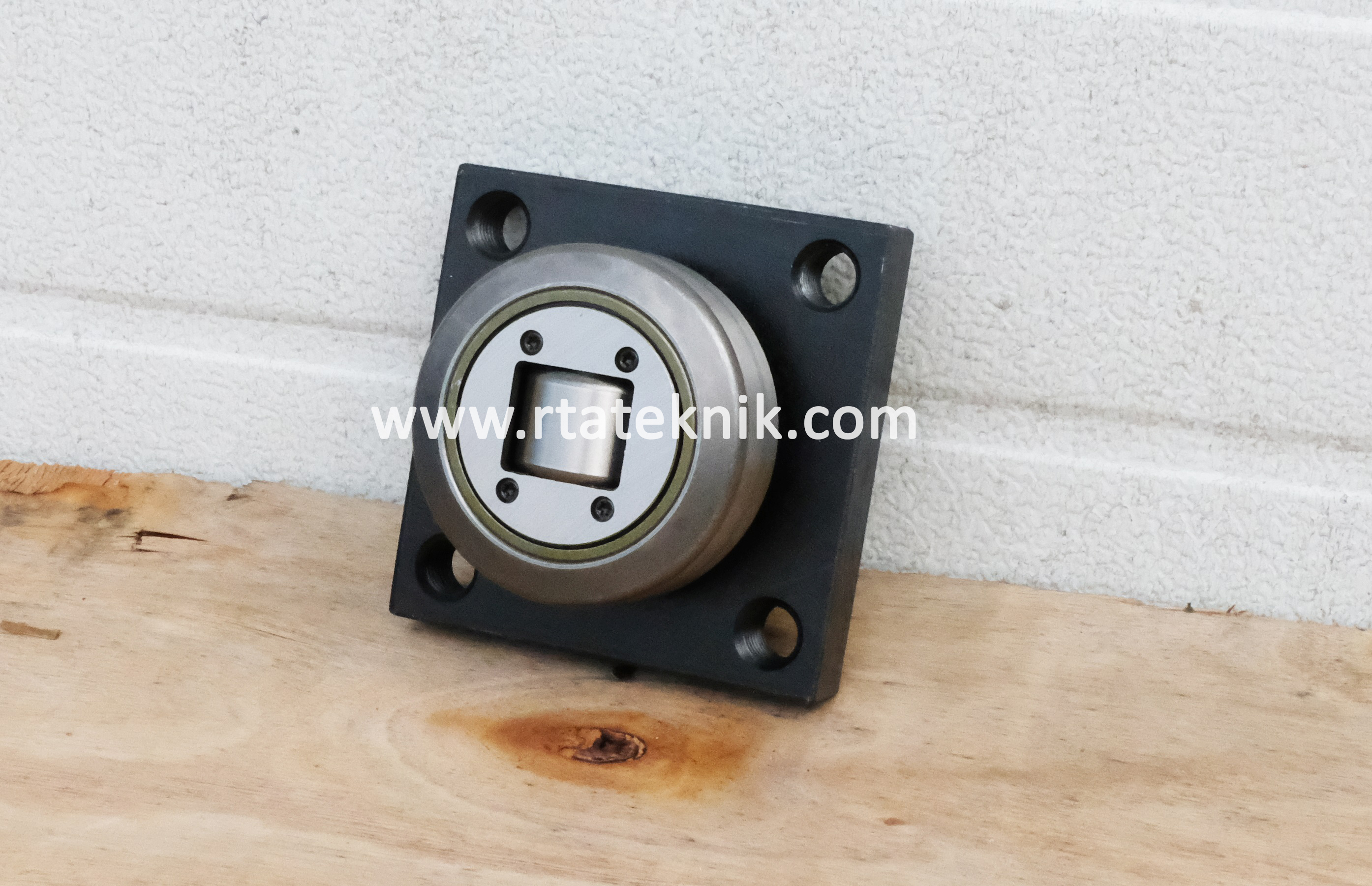

Combined bearing atau bearing kombinasi adalah salah satu jenis bearing yang dapat menopang beban radial dan axial secara bersamaan. Struktur dan desain combined bearing ini di desain sedemikian rupa sehingga mampu menahan beban radial dan axial hingga 90°. PT Raja Teknik Aditama menyediakan berbagai macam combined bearing dengan standard eropa. Berikut ini adalah standar combined bearing kami:
Material structure
Outer ring : Steel UNI 16NiCr dengan proses pengerasan khusus dengan kekerasan permukaan ± 60HRC
Inner ring : Chrome Steel UNI 100Cr dengan proses pengerasan dan temper hingga kekerasan ± 60 HRC
Roller : Chrome Steel UNI 100Cr dengan proses pengerasan dan temper hingga kekerasan ± 60 HRC
Stud : Steel FeC annealed (memiliki kemampuan untuk di las sangat baik)
Standard toleransi
Toleransi : sesuai dengan standar Germany DIN 620
Kelas Toleransi : P0
Radial clearance : sesuai dengan standar Germany DIN 620
Load Ratings : sesuai dengan standar ISO 76 dan ISO 281
|

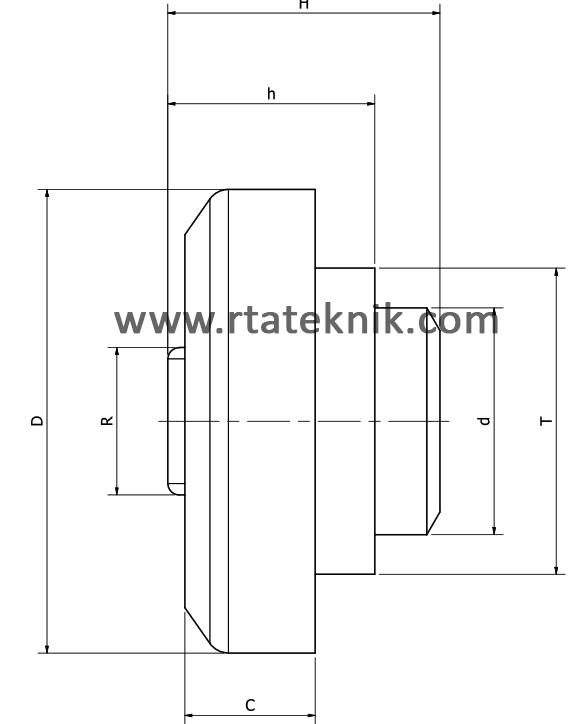

Part No./ designation |
Dimensi (mm) |
Kapasitas beban (Kn) |
||||||||||
|
Part no. Armasparts |
Part no. standard |
D |
H |
h |
d |
T |
C |
R |
C |
Co |
Ca |
Coa |
|
ARM4053-52.5 |
4.053 / TR050.0200 |
52.5 |
33 |
27 |
30 |
40 |
19 |
16 |
24 |
33 |
10 |
14 |
|
ARM4054-62.0 |
4.054 |
62 |
37.5 |
30.5 |
30 |
42 |
20 |
20 |
39 |
65 |
15 |
22 |
|
ARM4054-62.5 |
4.054 / TR060.0200 |
62.5 |
37.5 |
30.5 |
30 |
42 |
20 |
20 |
39 |
65 |
15 |
22 |
|
ARM4055-70.1 |
4.055 / TR070.0200 |
70.1 |
44 |
36 |
35 |
48 |
23 |
22 |
57 |
96 |
18 |
26 |
|
ARM4056-77.7 |
4.056 / TR080.0200 |
77.7 |
48 |
36.5 |
40 |
54 |
23 |
24 |
60 |
106 |
20 |
32 |
|
ARM4057-77.7 |
4.057 |
77.7 |
40 |
29 |
40 |
53 |
23 |
24 |
59 |
102 |
20 |
32 |
|
ARM4058-88.4 |
4.058 / TR090.0200 |
88.4 |
57 |
44 |
45 |
59 |
30 |
26 |
85 |
132 |
18 |
22 |
|
ARM4059-101.2 |
4.059 |
101.2 |
46 |
33 |
50 |
67 |
28 |
30 |
92 |
153 |
32 |
50 |
|
ARM4060-107.7 |
4.060 |
107.7 |
53 |
39 |
55 |
71 |
31 |
34 |
97 |
167 |
40 |
65 |
|
ARM4061-107.7 |
4.061 / TR110.0200 |
107.7 |
69 |
55 |
60 |
71 |
31 |
34 |
97 |
167 |
40 |
65 |
|
ARM4062-123.0 |
4.062/ TR120.0200 |
123 |
72.3 |
56 |
60 |
80 |
37 |
40 |
135 |
242 |
47 |
90 |
|
ARM4063-149.0 |
4.063 / TR150.0200 |
149 |
78.5 |
58.5 |
60 |
103 |
45 |
50 |
188 |
370 |
85 |
120 |
|
ARM4064-149.0 |
4.064 |
149 |
86 |
67 |
60 |
108 |
45 |
50 |
188 |
370 |
85 |
120 |
|
ARM4037-174.0 |
4.037 |
174 |
95 |
71 |
80 |
120 |
55 |
63 |
284 |
563 |
185 |
324 |
|
ARM4039-185.0 |
4.039 |
185 |
95 |
71 |
80 |
120 |
55 |
63 |
284 |
570 |
200 |
355 |
Ordering example:
ARM4056-77.7 : Combined bearing type 4.056; brand: Armasparts
